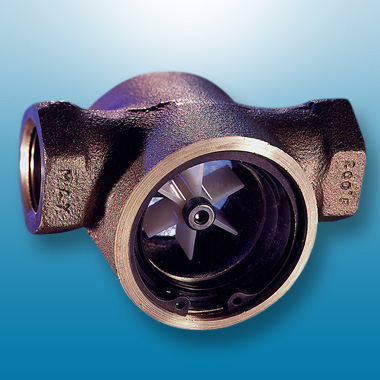

OPW VISI-FLO 1600 OEM Series Sight Flow Indicators流量視鏡
OPW VISI-FLO 1600 系列可視流量指示器,流量視鏡
OPW工程系統公司提供對作業中的流體進行監控、檢測和顯示的產品。無論客戶是監控石石油產品、液化氣體、溶劑，或是危險的、腐蝕性化學品，OPW的儀器及配件都將幫助客戶控制這些流體。OPW提供完整系列的可視流量指示器，包括流行的VISI-FLO系列。OPW可視流量指示器提供了一種快速、可靠和便宜的途徑，通過該途徑可以核對流速和流向，以及監控流體管線中顏色和澄清度。OPW可視流量指示器各種尺寸、形式和材質可用于廣泛的工業應用中，所有OPW可視流量指示器都通過了1.5倍的額定壓力測試，從而確保其在惡劣的使用環境中擁有- 大的可靠性。
OPW 1600系列可視流量指示器有優質的材料制造，經過安全測試，以經濟的價格保證長期可靠地服務。有助于監控關鍵流體流量、潤滑劑、冷卻劑管線和噴水系統。OPW 1600 Series Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. Good for monitoring critical fluid flow, lubricants, coolant lines and sprinkler systems.
OPW VISI-FLO Sight Flow Indicators 可視流量指示器 PDF
優點：
- 經濟的價格
- 允許您快速核實流量，并監控流體管線內顏色和澄清度。
- 可在48小時內運至，以便將停機時間減到- 少。
標準配置：
- 黃銅結構
- 單個核雙觀察窗設計
- 1/8'' - 2 ''的尺寸
- 壓力額定值為125psig
- 提供帶或無轉子型
- FNPT或者BSPT連接
規格參數：
- - 大壓力 125PSIG
- - 高溫度：93度
- 密封件：1600全系列采用標準丁晴橡膠。如有要求，其它密封件可控選擇。
- 玻璃類型：鋼化堿石灰
- 螺紋：NPT,BSPT
- 指示器：Delrin
- 殼體：青銅
OPW VISI-FLO Sight Flow Indicators
OPW Engineered Systems offers a complete line of sight flow indicators, including the popular VISI-FLO series.Sight-flow indicators are a cost-effective and efficient way to visually monitor the flow of fluids and to determine if any problems exist at certain points along the industrial process line. VISI-FLO is the most thoroughly engineered sight-flow indicator on the market and is available in three series: the Standard 1400 Series, the 1500 High-Pressure/High-Temperature Series and the 1600 OEM Series.
Exclusive 3-Year "No-Leak" Guarantee: An innovative radial seal creates a constant and uninterrupted sealing force between the body and outside diameter of the glass lens for a longer-lasting and better seal than conventional flat seals
Maintenance-Free Design: Bolt-on-body design requires no special maintenance or torqueing sequence in order to prevent leaks, resulting in safer operation than units using tie rods to fasten the lens and seal to the body
Dimensional Interchangeability: Feature end-to-end dimensions that match Jacoby-Tarbox and Penberthy and other manufacturers' units. Available in 3/4", 2", 3" and 4" sizes
OPW Engineered Systems offers a complete line of sight flow indicators, including the popular VISI-FLO series.
VISI-FLO 1400 Series Sight Flow Indicators
VISI-FLO 1500 Series Sight Flow Indicators
VISI-FLO 1600 OEM Series Sight Flow Indicators
