OPW Kamvalok 1600AN系列陽端接頭 干式接頭
OPW 1600AN Series Adaptors for Kamvalok® Couplings
OPW 1600AN系列專為與OPW Kamvalok陰端接頭配合使用以防止聯接/脫卸過程中的液體泄露而設計的。陽端接頭內含一個彈簧加載的提升閥，用來保證快速關閉和可靠密封。
1600AN Series Adaptors for Kamvalok® Couplings_PDF下載
1600AN系列是專為OPW Kamvalok陰端接頭配合使用以防止聯接/脫卸過程中液體泄漏而設計的。陽端接頭內含一個彈簧加載的提升閥，用來保證快速關閉和可靠密封。The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok- Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and tight seal.
OPW Kamvalok 1700DL Series Coupler

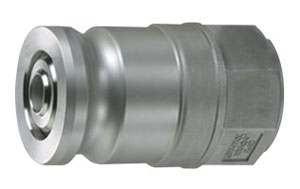

1600AN Series Kamvalok Adaptor
Kamvalok 1600AN系列陽端接頭特點
- 提供1 ”, 2”和3”規格
- 高強度結構—可提供鋁合金和不銹鋼兩種材質。不銹鋼的耐腐蝕強度可與316不銹鋼相當。
- 內螺紋聯接—可以與外螺紋管接口或軟管接頭相配合。
- 彈簧加載的提升閥結構—能保證快速關閉和可靠密封。
- 多種密封材質可供選用—可提供Buna-N, Fluorocarbon, PTFE, EPDM和Chemraz?。
Kamvalok 1600AN系列陽端接頭優點
- 整體式結構—消除一切可能泄露的途徑。
- 防止漏液—采用提升閥操縱結構，只能在Kamvalok?陰端接頭接好的情況下打開，在關閉情況下其設計結構能提供可靠密封。
- 運行可靠—簡單的彈簧加載提升閥結構和高強度結構材質能確保長期、可靠的運行。
- -優化的流量條件—通過內置折流擋板來消除湍流，保證均勻的流量和較低的壓降。

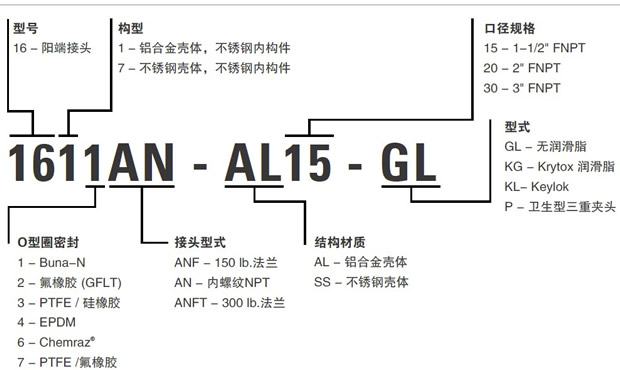

- 訂貨型號選型
OPW 1600AN Series Adaptor Ordering Specifications：
Stainless Steel Adaptors - Female NPT
產品型號 |
尺寸 |
| 1671AN-SS15 |
1-1/2" Buna Seal, Stainless Steel |
| 1671AN-SS20 |
2" Buna Seal, Stainless Steel |
| 1671AN-SS30 |
3" Buna Seal, Stainless Steel |
| 1672AN-SS15 |
1-1/2" Viton Seal, Stainless Steel |
| 1672AN-SS20 |
2" Viton Seal, Stainless Steel |
| 1672AN-SS30 |
3" Viton Seal, Stainless Steel |
| 1673AN-SS15 |
1-1/2" Teflon Silicone Seal, Stainless Steel |
| 1673AN-SS20 |
2" Teflon Silicone Seal, Stainless Steel |
| 1673AN-SS30 |
3" Teflon Silicone Seal, Stainless Steel |
| 1674AN-SS15 |
1-1/2" EPT Seal, Stainless Steel |
| 1674AN-SS20 |
2" EPT Seal, Stainless Steel |
| 1674AN-SS30 |
3" EPT Seal, Stainless Steel |
| 1676AN-SS15 |
1-1/2" Chemraz Seal, Stainless Steel |
| 1676AN-SS20 |
2" Chemraz Seal, Stainless Steel |
| 1676AN-SS30 |
3" Chemraz Seal, Stainless Steel |
| 1677AN-SS15 |
1-1/2" Teflon-Viton Seal, Stainless Steel |
| 1677AN-SS20 |
2" Teflon-Viton Seal, Stainless Steel |
| 1677AN-SS30 |
3" Teflon-Viton Seal, Stainless Steel |
| 1679AN-SS15 |
1-1/2" Viton-B Seal, Stainless Steel |
| 1679AN-SS20 |
2" Viton-B Seal, Stainless Steel |
| 1679AN-SS30 |
3" Viton-B Seal, Stainless Steel |
Aluminum Adaptors - Female NPT
產品型號
|
尺寸規格 |
| 1611AN-AL15 |
1-1/2" Buna Seal, Alum. & Stainless Steel |
| 1611AN-AL20 |
2" Buna Seal, Alum. & Stainless Steel |
| 1611AN-AL30 |
3" Buna Seal, Alum. & Stainless Steel |
| 1612AN-AL15 |
1-1/2" Viton Seal, Alum. & Stainless Steel |
| 1612AN-AL20 |
2" Viton Seal, Alum. & Stainless Steel |
| 1612AN-AL30 |
3" Viton Seal, Alum. & Stainless Steel |
| 1612A-AL07 |
3/4" Viton Seal, Alum. & Stainless Steel |
| 1613AN-AL15 |
1-1/2" Teflon Seal, Alum. & Stainless Steel |
| 1613AN-AL20 |
2" Teflon Seal, Alum. & Stainless Steel |
| 1613AN-AL30 |
3" Teflon Seal, Alum. & Stainless Steel |
| 1614AN-AL15 |
1-1/2" EPT Seal, Alum. & Stainless Steel |
| 1614AN-AL20 |
2" EPT Seal, Alum. & Stainless Steel |
| 1614AN-AL30 |
3" EPT Seal, Alum. & Stainless Steel |
| 1616AN-AL15 |
1-1/2" Chemraz Seal, Alum. & Stainless Steel |
| 1616AN-AL20 |
2" Chemraz Seal, Alum. & Stainless Steel |
| 1616AN-AL30 |
3" Chemraz Seal, Alum. & Stainless Steel |
| 1619A-AL07 |
3/4" Viton-B Seal, Alum. |
| 1619AN-AL15 |
1-1/2" Viton-B Seal, Alum. |
| 1619AN-AL20 |
2" Viton-B Seal, Alum. |
| 1619AN-AL30 |
3" Viton-B Seal, Alum. |
Approvals
| AAR Number |
Description |
| E129504 |
1600AN Series Kamvalok Adpater – Threaded |
| E129505 |
1600ANF Series Kamvalok Adapter – Flanged |
| E129507 |
634B/733DCL Series Kamlok/Autolok Dust Caps |
| CRN Number |
Region |
Description |
| OA4911.52 |
Alberta |
1.5”, 2”, 3” Aluminum and SST Kamvalok |
| OA4911.5R1 |
Ontario |
1.5”, 2”, 3” Aluminum and SST Kamvalok |
Ordering Specifications
CARB APPROVED AST EQUIPMENT - Direct Fill |
Product # |
Seal |
in. |
mm |
| 1611AN-2040 |
Direct Fill with Buna seal |
2 |
51 |
| 1612AN-2040 |
Direct Fill with Viton seal |
2 |
51 |
| 1611AN-3060 |
Direct Fill with Buna seal |
3 |
77 |
| 1612AN-3060 |
Direct Fill with Viton seal |
3 |
77 |
CARB APPROVED AST EQUIPMENT - Remote Fill |
| 1611AN-0200 |
Remote Fill with Buna Seal |
2 |
51 |
| 1611AN-0300 |
Remote Fill with Buna Seal |
3 |
77 |
| 1612AN-0150 |
Remote Fill with Viton? Seal |
1-1/2 |
38 |
| 1612AN-0200 |
Remote Fill with Viton? Seal |
2 |
51 |
| 1612AN-0300 |
Remote Fill with Viton? Seal |
3 |
77 |
| 1612AN-SS20 |
2" Stainless Steel Kamvalok? Adaptor |
2 |
51 |
| 1612AN-SS30 |
3" Stainless Steel Kamvalok? Adaptor |
3 |
77 |
OPW 1600AN Series Kamvalok Adaptor
The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok? Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and a tight seal.
性能參數：
Available in 1 ”, 2” & 3” Sizes
Heavy-Duty Construction – Available in aluminum, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel)
Female Threads – Can be fitted to either a male pipe end or to a hose fitting
Spring-Loaded Poppet Design – Assures fast closing and a tight seal
Wide Range of Seals Available – Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz?
Single Piece Design – Eliminates a possible leak path
Spill Prevention – Poppet-actuated design can only be opened with a Kamvalok? coupling; designed to provide a tight seal when closed
Reliability of Operation – The simple spring-loaded poppet design and heavy-duty construction provide for reliable, long-life operation
Optimum Flow Rate – Even flow and low pressure drop are achieved by a built-in deflector that reduces turbulence
Kamvalok Dry Disconnect Couplings by OPW Engineered Systems
Because of its unique poppet action the OPW Kamvalok Dry Disconnect virtually eliminates spillage of any residual liquid contained within the line after disconnection. Kamvaloks are used at transfer points where product loss is unacceptable.
Learn more about our Kamvalok brand of products

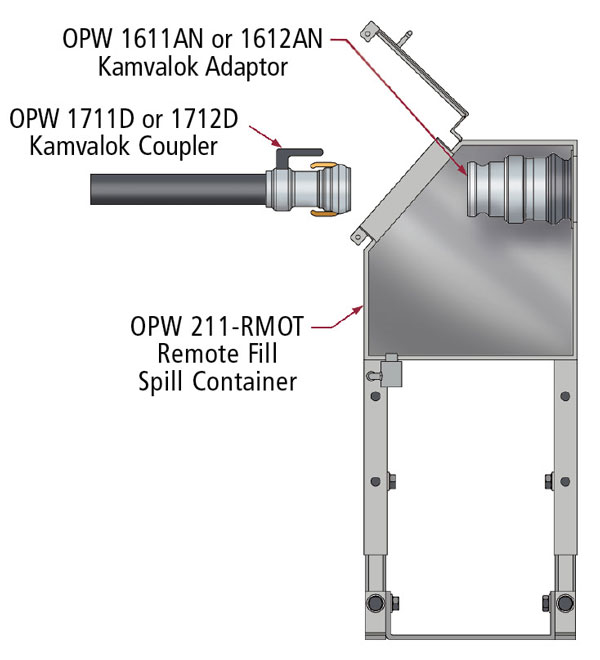

Typcial AST Filling Application
